ProConnect 4 | Prolectric Services

Versatile communication systems applicable for off-grid wi-fi and connectivity.

Smart Batteries: No need to drain the battery or follow a monthly ‘maintenance’ program.

Remote Monitoring: Equipped with GPS and micro-controller for real-time data tracking and remote control.

Smart Safety: The Prolectric Automatic Mast Safety System (PAMS) is an automatic fail-safe system built-in.

High-Power Capacity: Delivers 1.520W total capacity, ensuring reliable operation even during long winter nights.

Array

Power consumption dependent on module type. Our team are available to consult on any unique application requirements.

Pattern

Pattern

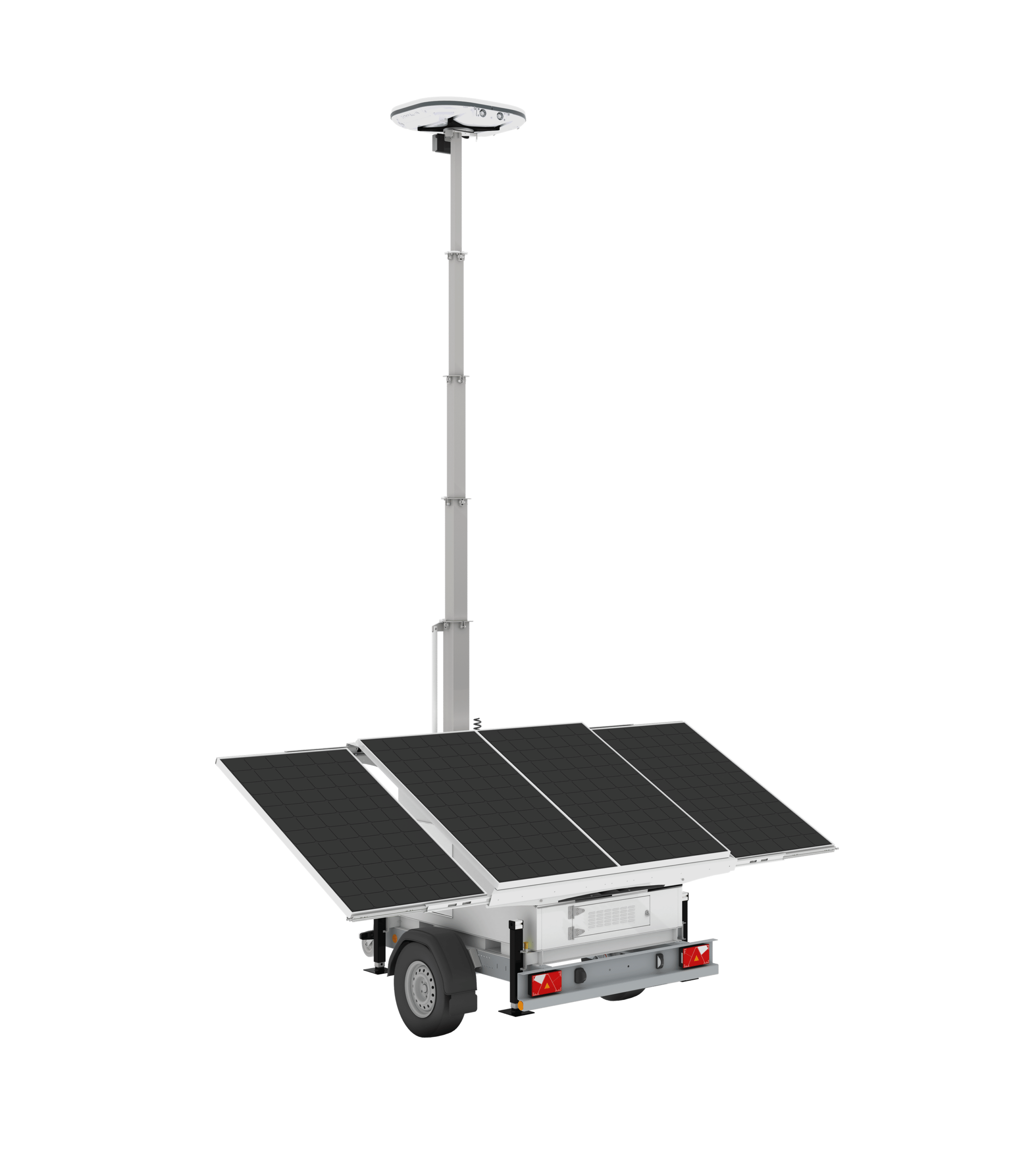

The ProConnect 4 is a 1.520W solar generator with 14.4kWh of heavy-duty, deep-cycle battery storage providing power that’s fuel, carbon emissions and noise free.

Hydraulic mechanisms deploy and tilt the four solar 380W panels to capture maximum sunlight and fold away for transportation.

The ProConnect 4 comes with real-time remote monitoring and control via the Prolectric power portal, providing access to performance data on the operating condition of the unit.

Reliable communication and power solutions across:

Large remote sites	Temporary bases
Outdoor events	Emergency responses
Remote healthcare	Disaster relief
Rescue operations	Military operations
Broadcast services	Power grid failure

Specifications

Wi-Fi Module

Power consumption dependent on module type.

Our team are available to consult on any unique application requirements.

Panels

4x 380W slidable solar panels

Battery

14.4kWh capacity

24V 600Ah lead carbon batteries

Heavy-duty, deep-cycle battery technology

Mast

6.8m, 360° pan motor rotatable hydraulic and telescopic mast

Mounting

Mobile trailer mounted and side forklift pockets

Dimensions

3600x2100x2527mm (Stowed)
3600x4107x6820mm (Deployed)

Weight

1,400kg

Interested in the ProConnect
Solar Power Tower?

Available for purchase

ProConnect 4
