ProTemp Temporary Solar LED Site Lighting

Outstanding lighting performance even in the winter months. 20W LED can produce an output of up to 4,000 lumens.
Smart Mast: Wind-up arm for easy setup of telescopic mast.
Integrated charging unit constantly monitors the state of the batteries.
3-PIR Sensors, the only light offering detection for a wider range of motion.
Array
Pattern
Pattern

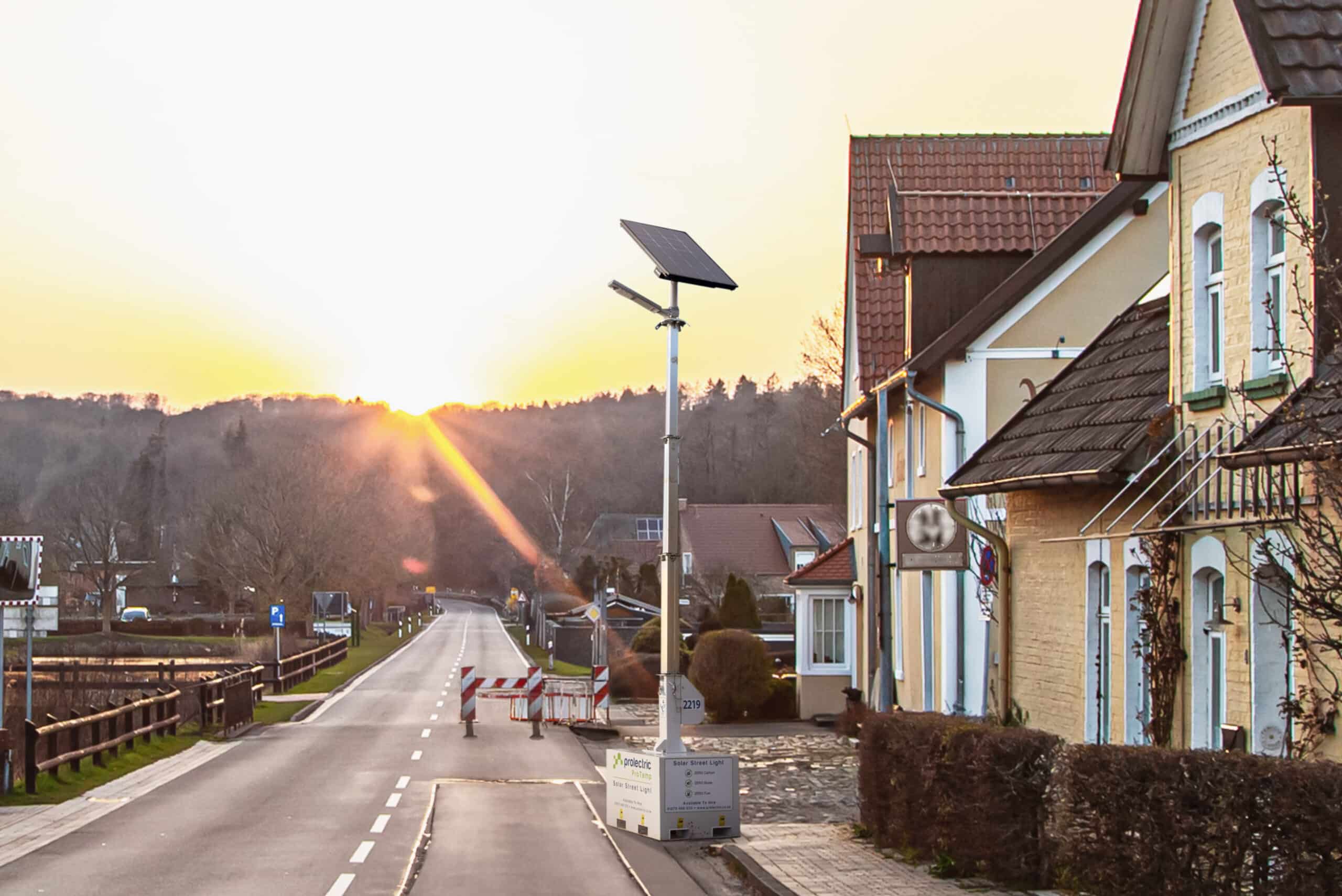

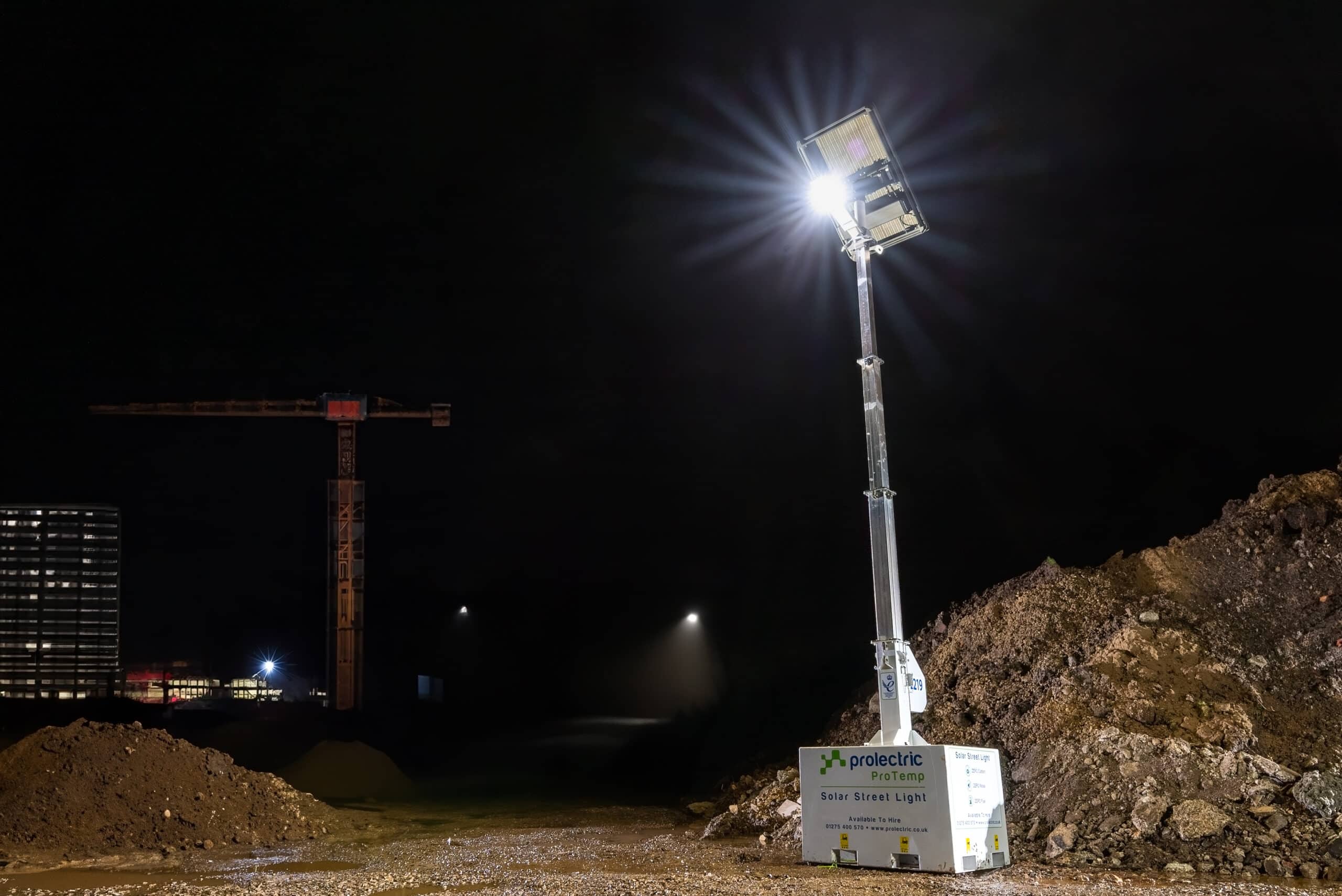

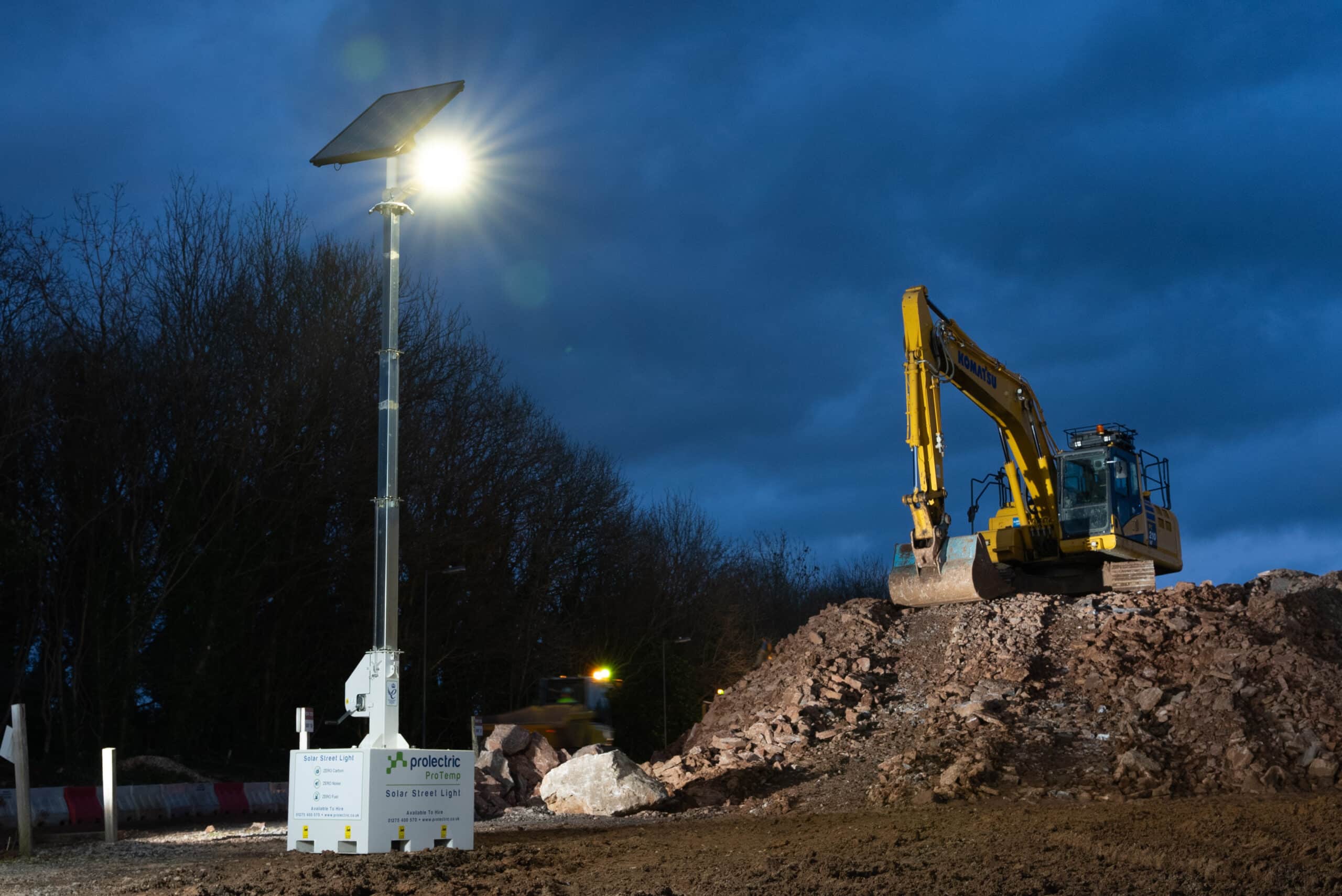

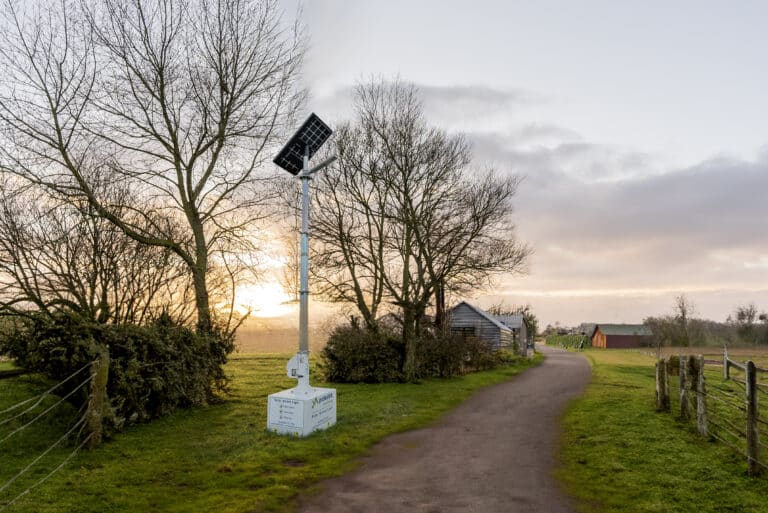

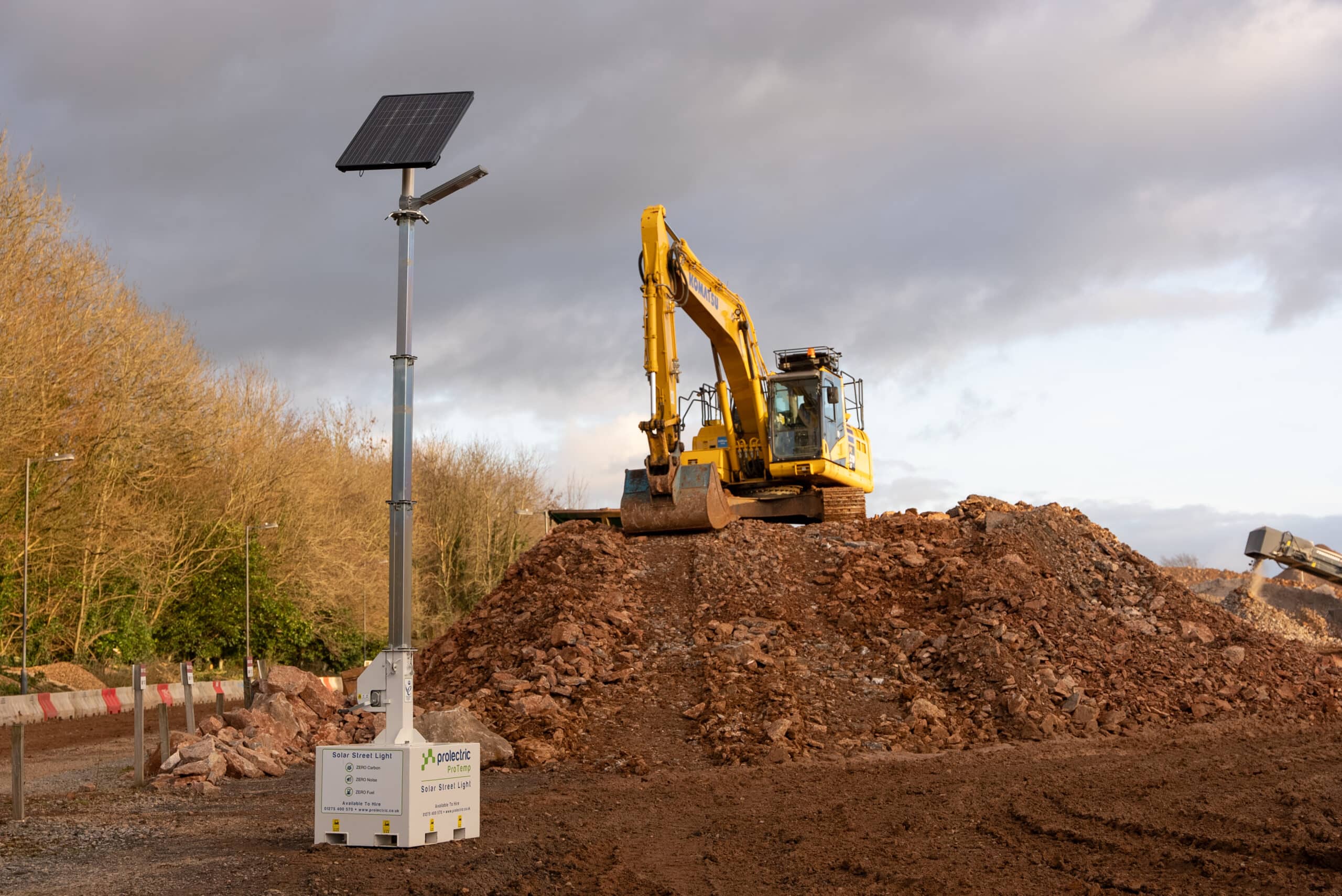

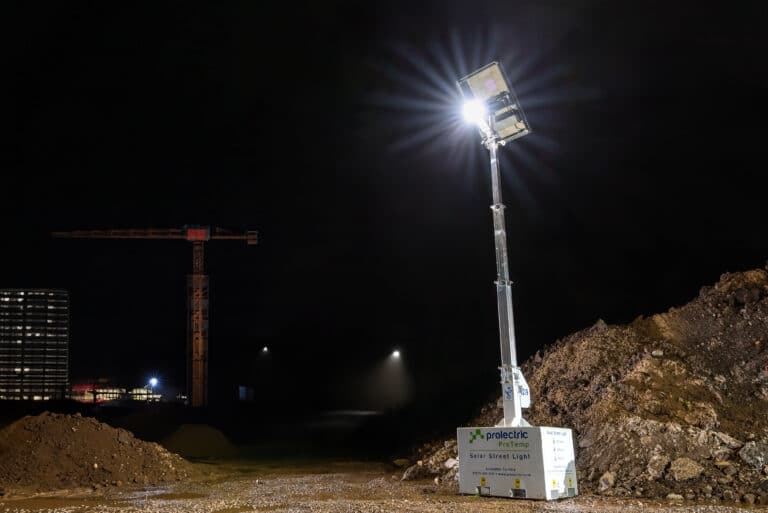

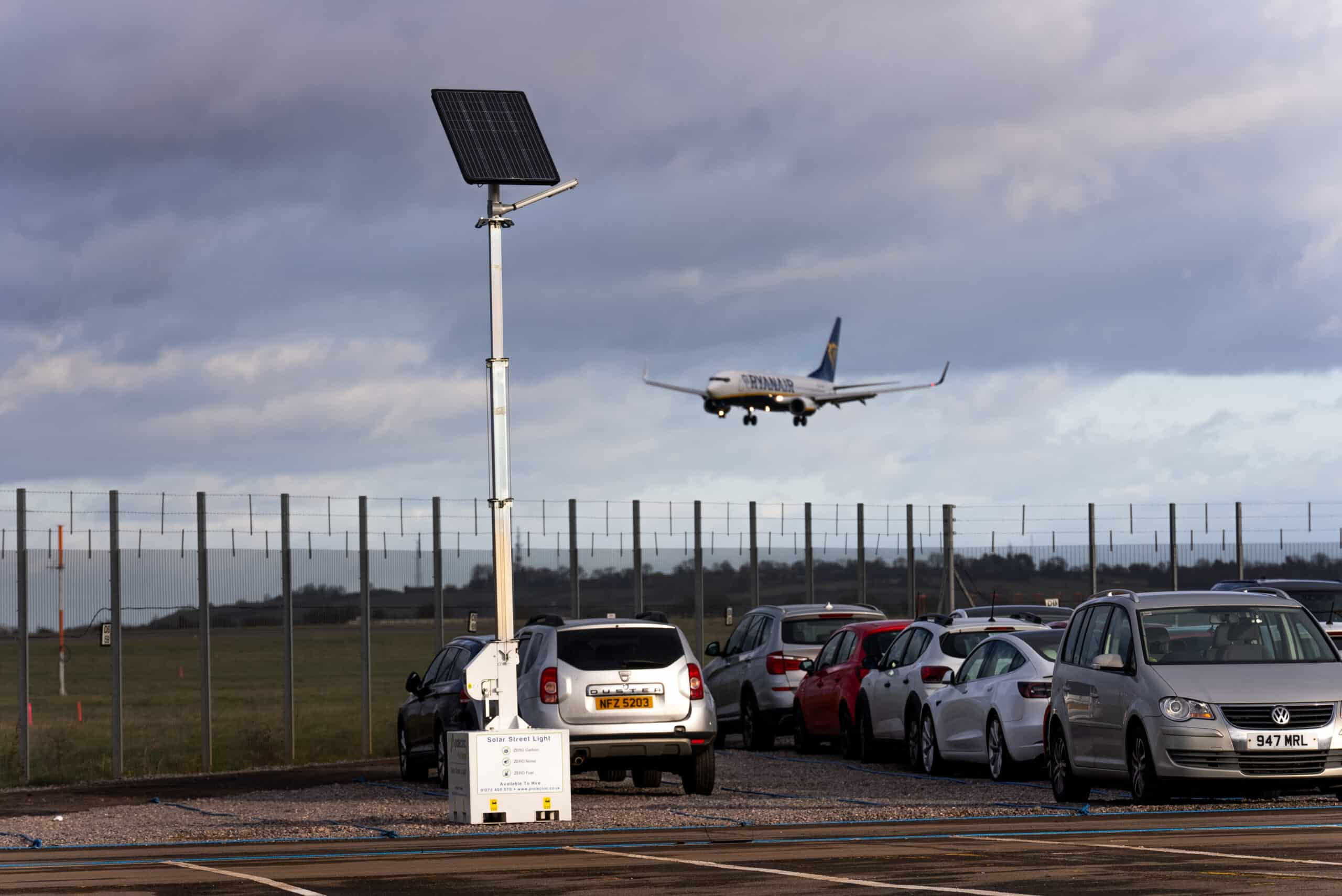

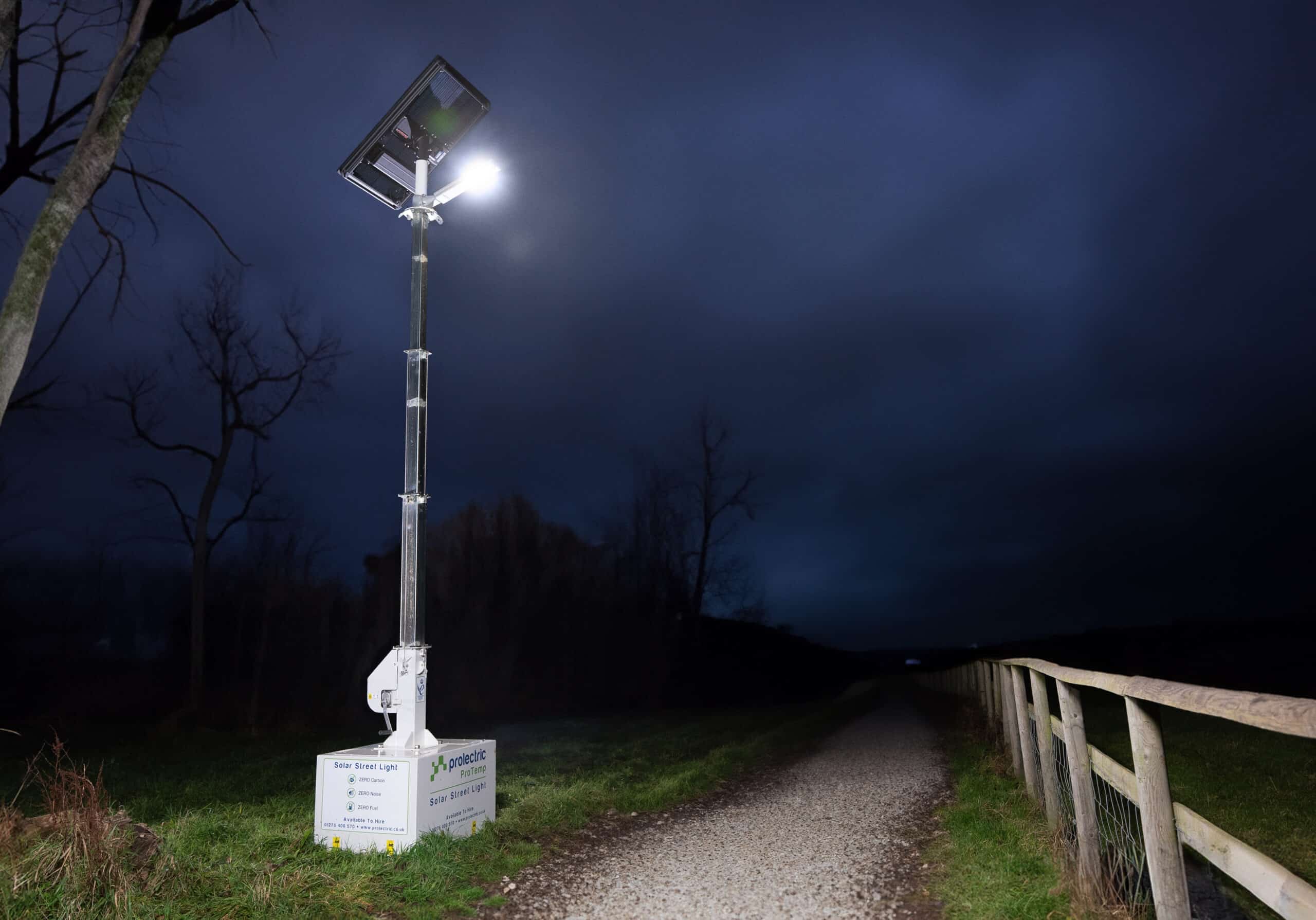

The Prolectric ProTemp is a temporary solar lighting column that delivers powerful and reliable year round lighting without noise or emissions for sites such as construction compounds, temporary car parks, outdoor events and festivals.

Lighting System

1x 20W LED light

Light Coverage

687sqm

*Download Product Specification Sheet for more detail.

Lux Levels

Adjustable lights to suit BS5489 British Standards

Lumens

Up to 3,800

Panels

150W solar panel

Battery

2x LiFePO4 lithium batteries

Mast

5.4m column mast with telescopic wind-up arm

Mounting

Standalone, mounted on 1-ton, steel-encased, concrete base with forklift pockets

Dimensions

1000x750x2000mm (Stowed)
1000x750x5400mm (Deployed)

Weight

1189kg

Smart Technology

Every ProTemp is fitted with smart Passive Infrared Sensor (PIR) to optimise power usage in the unit. A bright light is activated when the area is entered by a vehicle or person. When the area is unused this ‘smart eye’ technology switches off to save battery usage and minimise light pollution.

Reliable Year Round Lighting

The Prolectric ProTemp has been proven in operation at a number of major construction sites across the UK. Working with our partner manufacturing suppliers we have developed and tested the unit, so we can be confident it will operate reliably even during dark days and winter conditions.

Continual Savings

The ProTemp lighting column delivers a powerful and reliable year round lighting solution without noise or emissions. The ProTemp offers a clean, low-carbon lighting solution that requires minimal maintenance.

Easy Install

The ProTemp can be moved into position quickly and easily with a forklift or telehandler to provide high-quality bright light that will continue reliably even through dark days and winter conditions. For contractors and events organisers, the ProTemp is a ‘setup and forget’ asset that does not need to be refuelled or serviced.

No Mains Power Required

With no mains power, the ProTemp dispenses with the need for a contractor to dig trenches, install trunking or cables and saves significantly on groundworking and installation costs.

Clean, Low Carbon Lighting

As an alternative to temporary diesel lighting, the ProTemp offers a clean, low-carbon lighting solution that requires minimal maintenance. Available for hire or purchase, it is straightforward to switch to the ProTemp.

Lighting Design Service

We will work with you to design a solar lighting solution specific to your site and deliver the right number of ProTemp lights to your site anywhere in the UK. Prolectric offers a lighting design service to ensure you have the optimum temporary lighting configuration for your site.

What’s the difference between solar lighting and traditional street lights?

Solar lights are entirely off-grid and require no cables or trenches.

Can solar street lights, light all roadways?

Our lights can be used on all unadopted roads, but not on adopted roads.

Adopted roads are looked after by councils and maintained accordingly. They also like to use a control system with all street lighting and have it on a set program. Due to the way our PIR’s work they are not effective enough to work on highways due to the speed of vehicles. By the time the car gets detected by the PIR, the light comes on after the car has passed the light.

What applications are the lights suitable for?

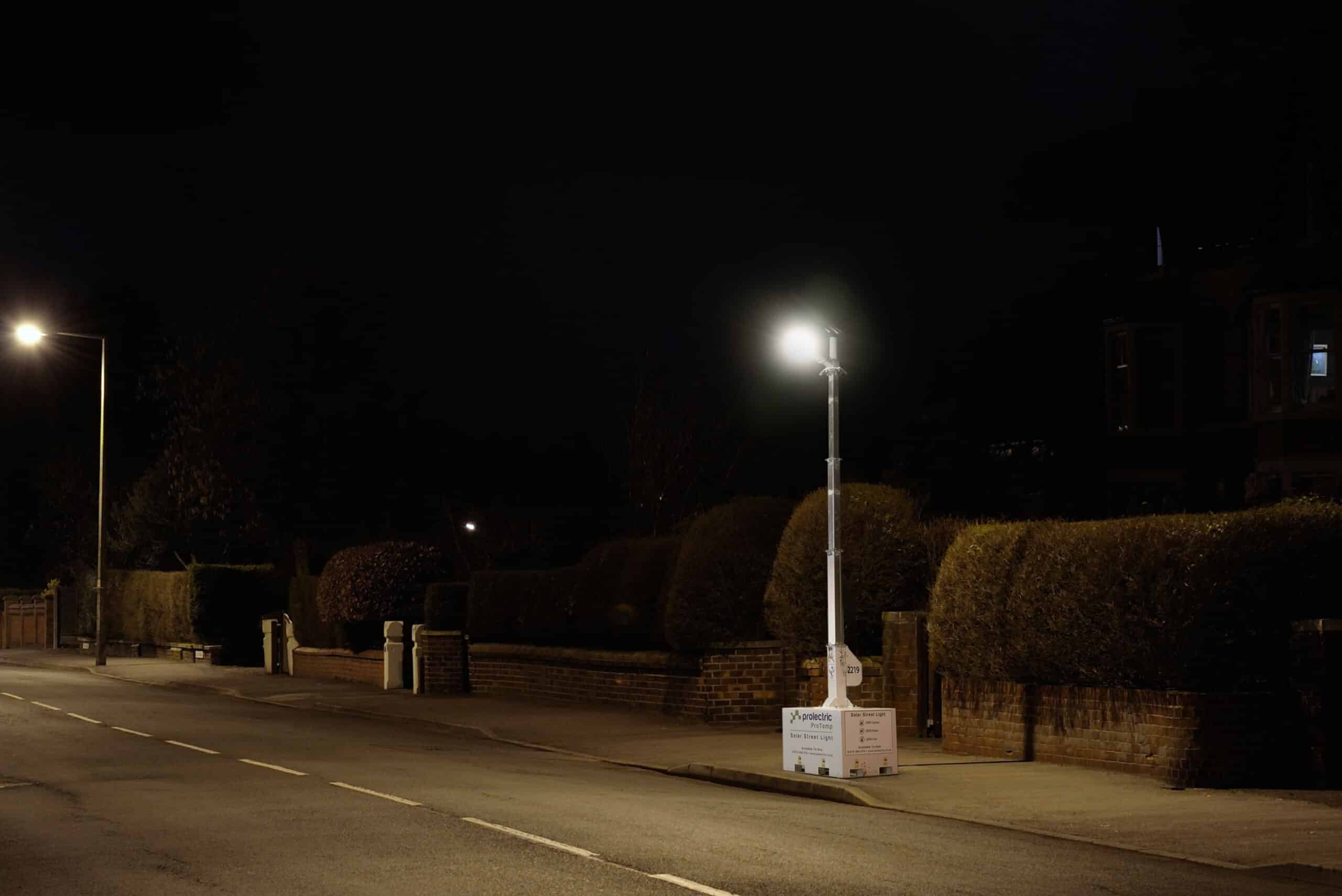

The solar street lights are used across both small and large sites in both commercial and residential settings including housing estates, parks, car parks, seafronts, campuses, hospital estates and military bases.

What light coverage do solar street lights provide?

Our AE6 provides coverage of up to 687m² at a level down to 0.4Lux. This measurement is on the ground and will be on the outer most edge of the light spread. It could be over 10 lux directly below the light but will dissipate the further you go from it. When a lighting design is created it overlaps with light spread from the other lights to give a uniformity.

What’s the battery life expectancy of the Solar Street lights?

2,500 cycles. However, this is not 2,500 days.  Majority of the year (roughly 9 months), the lights do not go thru a full cycle every day. They are expected therefore to last between 4 – 7 years dependent the level and number of full discharges.

Do the solar street lights work in winter?

Yes, we have been installing lights in the UK since 2011 and we have developed the software and knowledge to ensure the lights work consistently up and down the UK.

Do Solar street lights work on a cloudy day?

The latest panel technology means that even on a cloudy day, power will still be generated. The battery has capacity for around 5 consecutive days of no solar yield, to cover even the worst periods of UK weather.

Can I monitor my street lights remotely?

Yes, we’re able to offer you access to our Street Lighting portals. A master and then gateways are added to the panels including a sim card for connectivity. The portal will give access to each panel and light connected to the specific setup network. You can see battery soc, generation, lights on or off. You can also put the lights on a time schedule away from their usual UK settings

Can the lights be programmed?

Yes, all of the settings are customisable. The lights will illuminate at dusk. The light intensity at both triggered and no triggered mode can be adjusted based on customer requirements. Additionally the lights can be set to turn off at a particular time if in a residential area.
